Battery Dowel ABB5400 TWOO 20V/4Ah, for opening a double round dowel, from Ø 5 - 12mm. With titling front, for height and drilling angle adjustment. Offered with 8 drills Ø 6-8-10-12mm, two 4Ah batteries & charger, in a carrying case, Drilling accessory for intermediate shelves, Stabilizer for drilling and Set of guides for repetitive and longitudinal drilling.
Applications:
Rows of holes.
Drilling for fittings/hardware.
Ideal for carcass and staircase construction in the workshop and on site.
Compatible materials include solid wood and board materials.
All types of joints from 5 - 12 mm.
The ABB400 double doweller system is more accurate and faster than other connecting systems.
Equipped with a powerful brushless motor for greater power and resistance to stress. Ease of use, without cables that enables use even in places where there is no power supply.
Specially designed, for drilling panels and mounting using common wooden dowels, from Ø 5mm to Ø 12mm, easily and quickly. All kinds of wooden construction joints, boxes, drawers, shelves, wardrobes, kitchen cupboards, etc.
Equipped with adjustable micrometric guide in height and angle.
Easy positioning of the machine at the drilling points, through retractable stop pins, but also visual references, standard every 32 mm. Equipped with side guides for repeated or spaced drilling, as well as a special fence for intermediate connections without additional measurements.
Double drilling for quick, easy and accurate assembly.
Easy adjustment of panel’s thickness.
Variable drilling depth setting, 0-38mm.

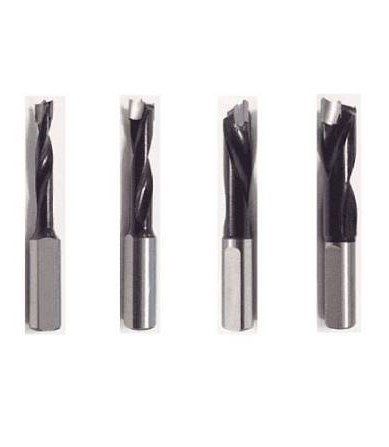

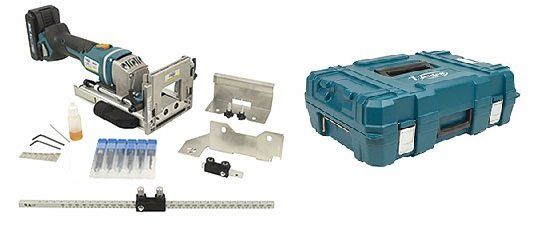

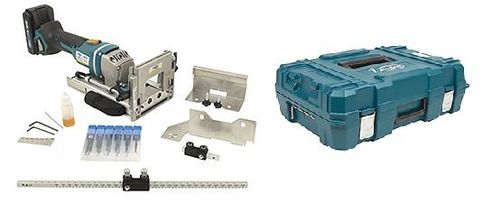

Equipped with 8 drills (6-8-10-12mm), dust collection adapter, Intermediate shelves guide, Drilling stabilizer, Longitudinal stopper + multidrilling set and stackable carrying case.
It is supplied in two versions : Without batteries (Solo), or With two BT204C 20V, 4Ah compact batteries and a charger.
Virutex BT204C compact batteries are smaller, lighter and equipped with SDI Li-Ion cells from Samsung, recognized as No.1 worldwide. They provide improved safety, energy efficiency, charging capacity, higher performance and lighter weight. The battery is protected against overcharging, overheating and full discharge. It has a 4-stage LED charge indicator and has a fast charge (full charge in one hour).
Video
Specification
Specially designed for the fast charge of the batteries BT202 & BT204.
Dowel ABB200 TWOO, 800W for opening a double round dowel, from Ø 5 - 12mm, in a case with ALL accessories and a set of guides for repeated and longitudinal drilling, accompanied by 8 drills Ø 6-8-10-12mm.
Applications:
Rows of holes.
Drilling for fittings/hardware.
Ideal for carcass and staircase construction in the workshop and on site.
Compatible materials include solid wood and board materials.
All types of joints from 5 - 12 mm.
The DuoDoweler DDF 40 introduces greater ease and efficiency to the task of drilling accurate dowel holes. Its hallmarks are a broad range of applications, a new ergonomic design for easy handling, and absolutely aligned, stable joints. Whether in the workshop or on site, no other hand-held power tool can produce such high-quality joints.
Applications:
Rows of holes.
Drilling for fittings/hardware.
Ideal for carcass and staircase construction in the workshop and on site.
Compatible materials include solid wood and board materials.
All types of joints from 3 - 12 mm (1/8 in. - 1/2 in.).
Applications:
Rows of holes.
Drilling for fittings/hardware.
Ideal for carcass and staircase construction in the workshop and on site.
Compatible materials include solid wood and board materials.
All types of joints from 5 - 16 mm (3/16 in. - 5/8 in.).
